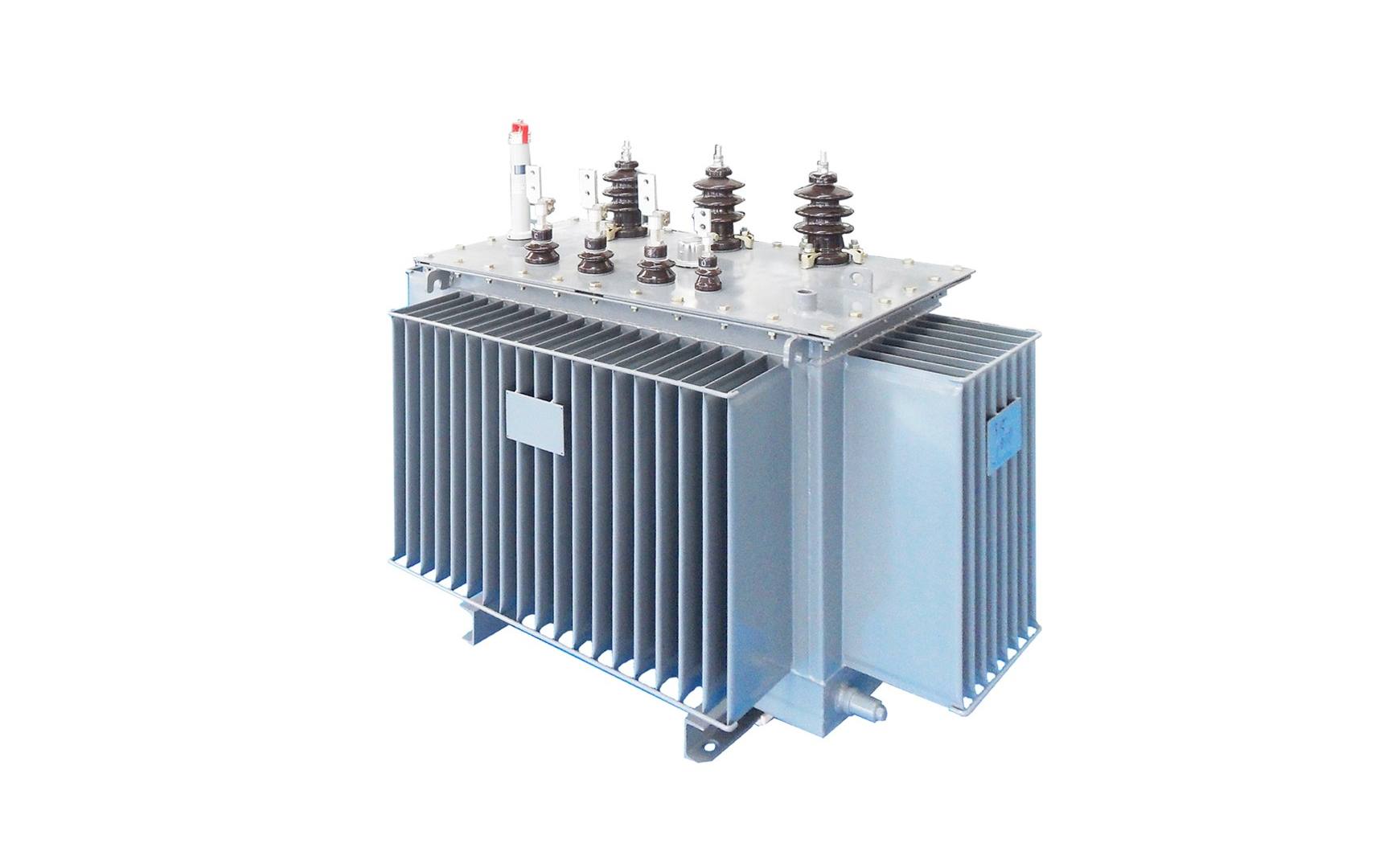

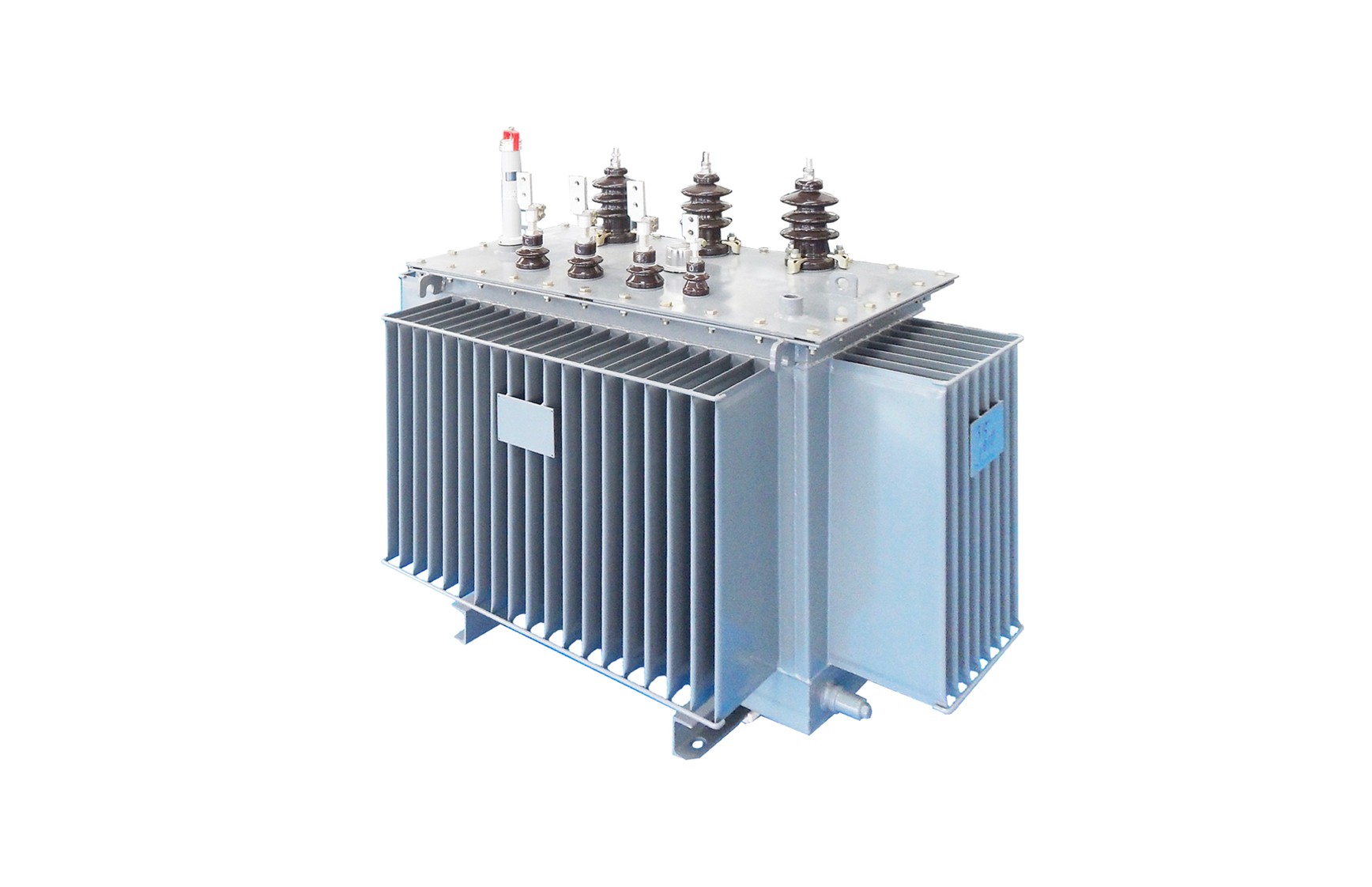

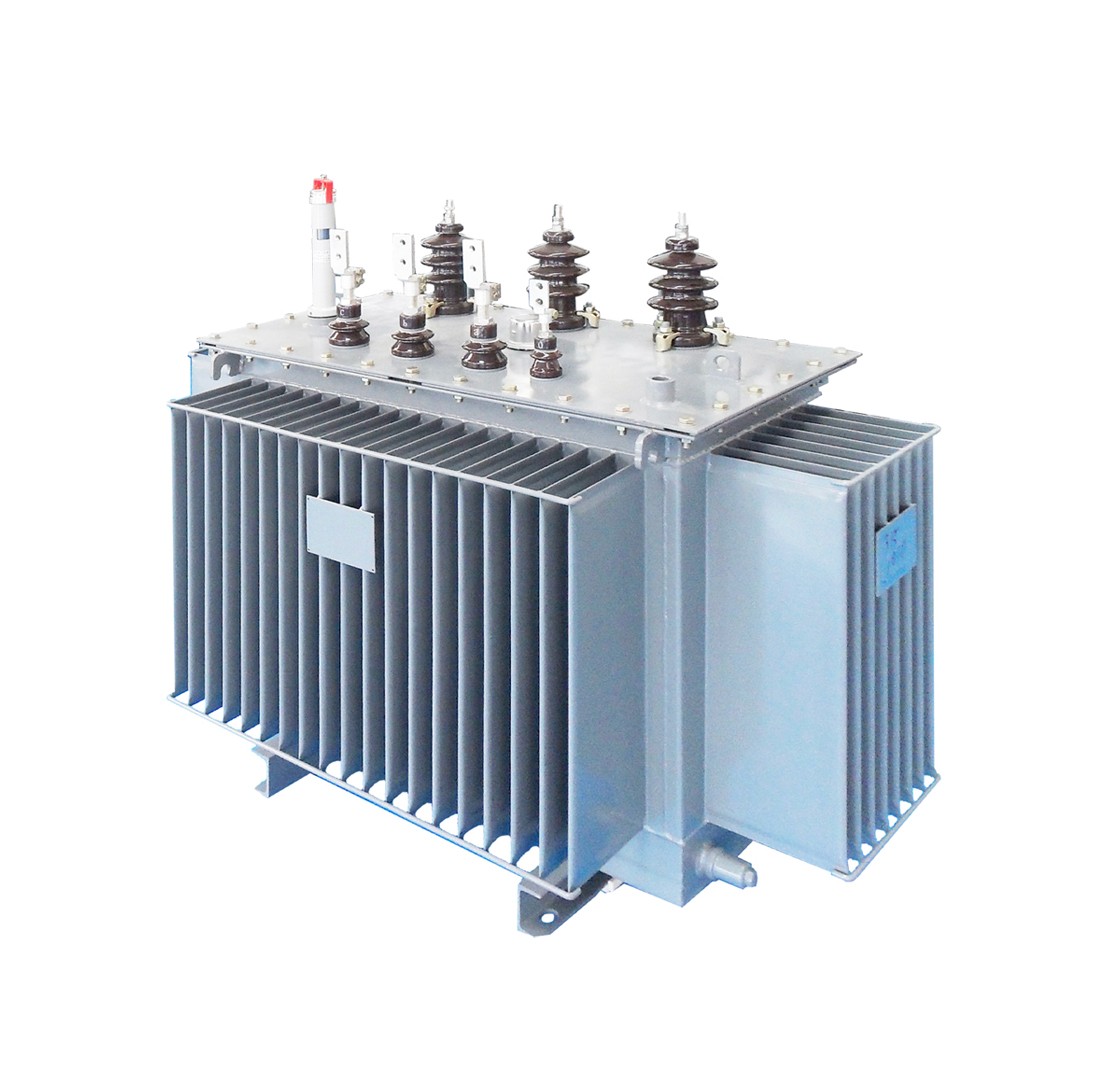

Oil immersed transformer
Oil immersed transformer is a type of transformer that adopts a stacked iron core structure,
in which the transformer core and winding are immersed in insulating oil. The fully sealed structure can
operate in various environments such as indoor and outdoor, high altitude, high pollution, and coastal areas.
Product Features
-
-
Reliable Performance
- 1. The product has the advantages of small partial discharge, low loss, low noise, good heat dissipation performance, strong moisture resistance, strong short-circuit resistance, and high overload capacity.
2. Good flame retardancy, non flammable, and does not produce harmful gases when exposed to a fire source.
3. The transformer is a low loss type, and the silicon steel sheet is made of high-quality high magnetic conductivity cold-rolled grain oriented silicon steel sheet.
4. Equipped with an intelligent temperature controller, it can remotely display temperature and status, and provide long-term monitoring and protection for transformers.
5. The transformer is equipped with a cross flow fan, which can be manually or automatically controlled and can be operated in different states through switch.
-
Technical Parameter
-
- Rated Voltage
- 10/24/35kV
-
- Rated capacity
- 100kVA-30000kVA
-
- Low voltage access rated voltage
- 0.4/0.8/1.14kV
