Oil and Gas

Home - Solutions - Oil and Gas

The electrical industry is a core component of public utilities, and power equipment is a crucial part of it.

Teruide provides customers with exquisite products and high-quality services in multiple dimensions such as new construction, renovation, expansion, and power load transfer.

Solution advantages

TGOOD offers comprehensive solutions, systems and services for diversified applications in high,
medium and low voltage power distribution networks.
Its leading technology in modular substations up to 252kV surpasses the expectations of efficiency, safety and reliability.

  • Reliable Performance
  • Cost Effective
  • Customer Design

Product

  • Medium Voltage C-GIS TGP40.5

  • Prefabricated Substation

  • Skid Substation

  • Dry transformer

  • High Voltage HGIS THP145

Medium Voltage C-GIS TGP40.5

TGP-40.5 is a medium voltage gas insulated switchboard up to 40.5kV, used in
primary distribution applications. It can be fitted with the following protection
devices:
• Transformer protection
• Line protection
Its compactness, wide range of functions and ease of installation and
extensibility, make it a versatile switchboard to fit many distribution applications
such as: public distribution, industry, infrastructure or renewables.

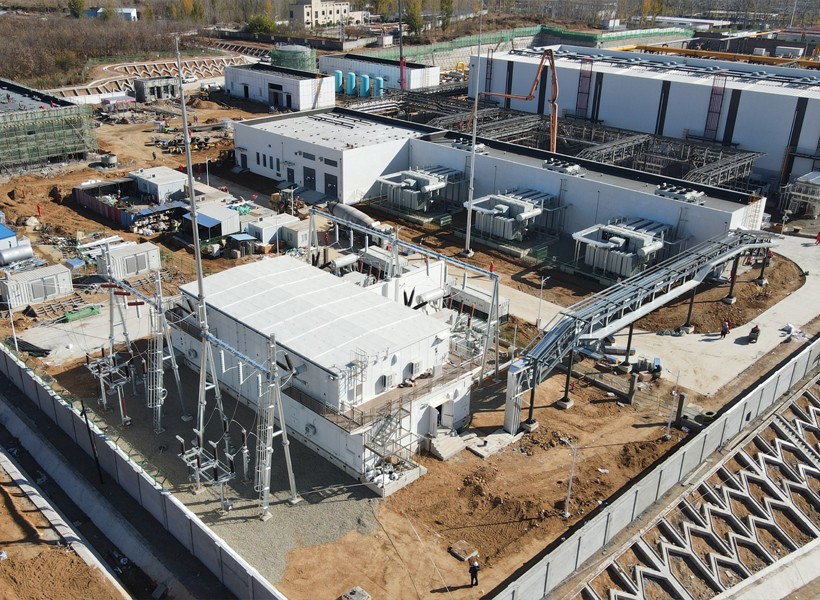

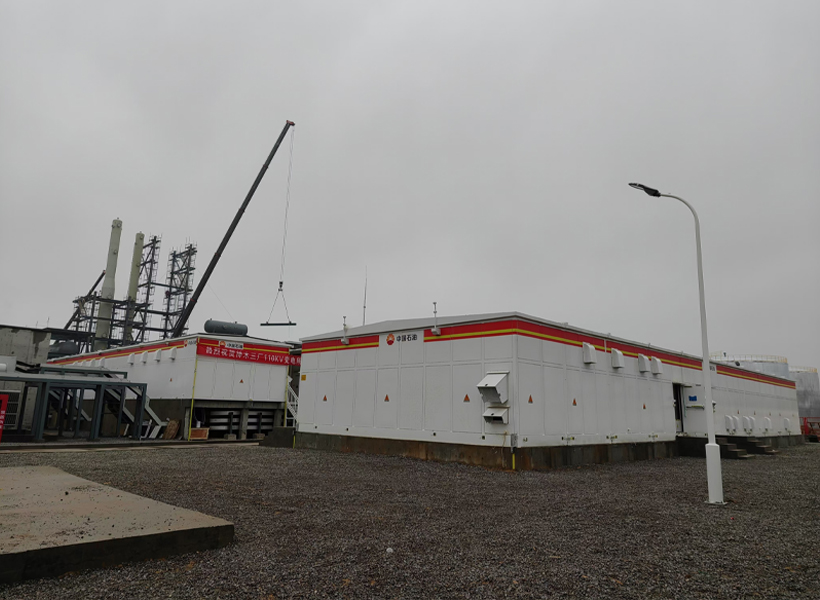

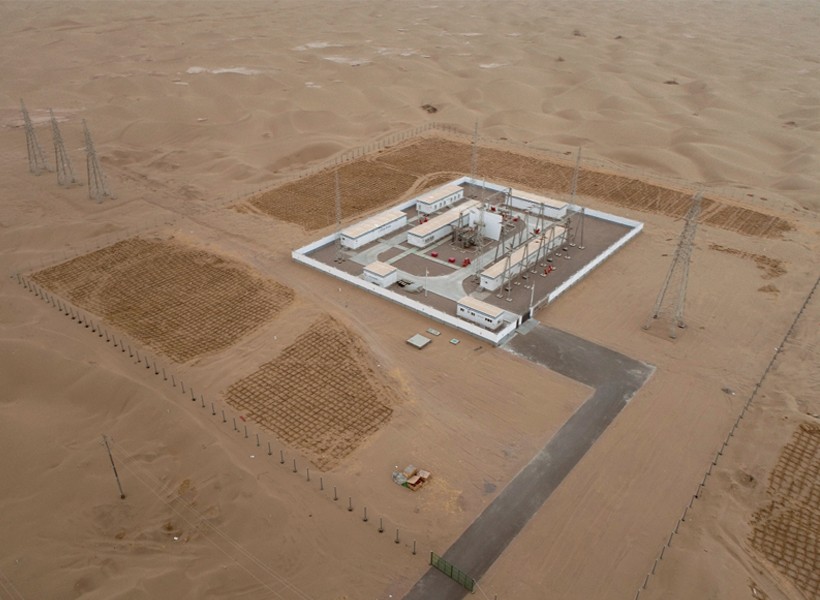

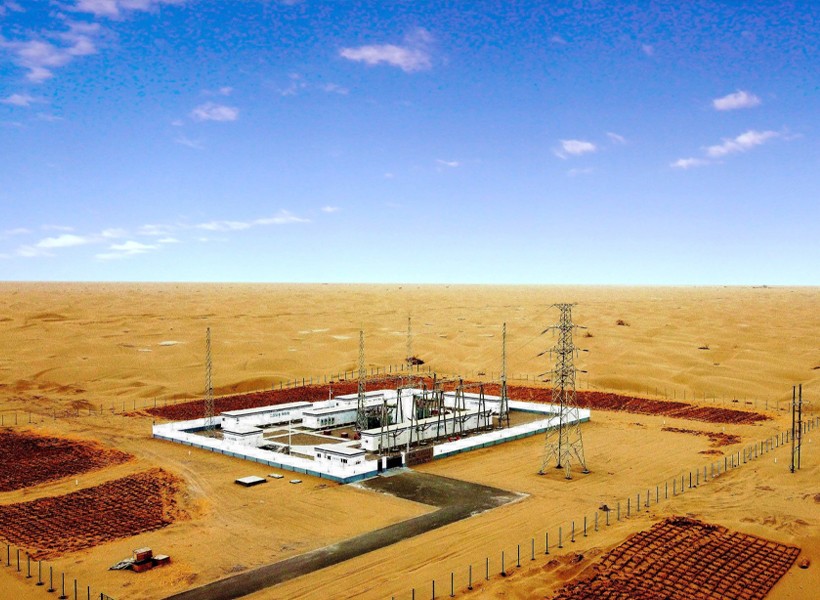

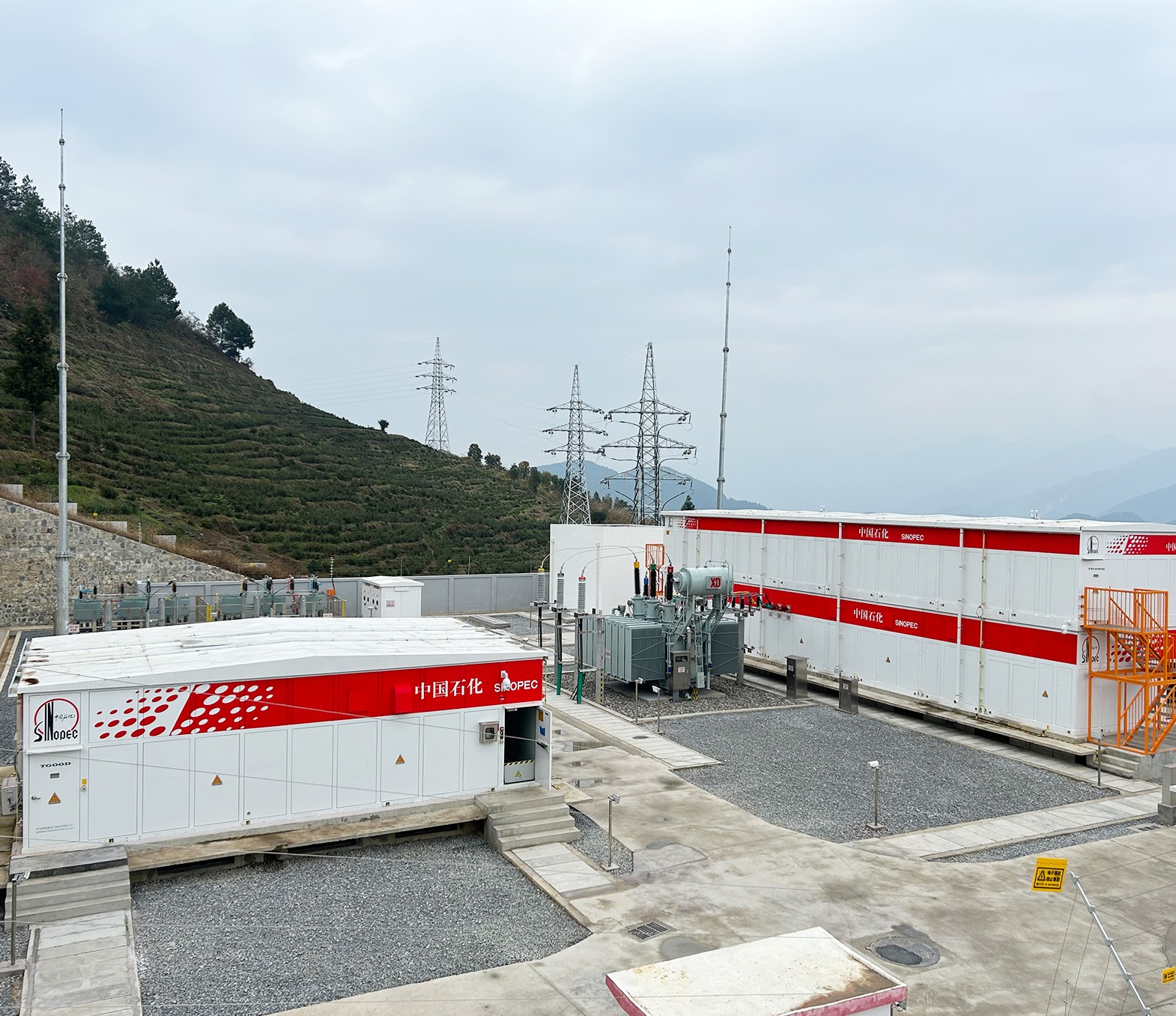

Prefabricated Substation

Fully integrated prefabricated substations and E-House systems
Best-in-class lead times measured in weeks, not months
Flexible designs can be skid or trailer mounted for rapid transport
Exceptional weatherproofing with strong condensation and corrosion resistance
High voltage gas insulated switchgear up to 145 kV available
Substation expansions and retrofits expand capacity within existing footprint in crowded cities and congested industrial zones
Standard designs comply with best international building codes; compliance with specific regional codes available

Skid Substation

Skid substation includes main transformer, high-voltage equipment, medium-voltage equipment, secondary equipment,
all equipments are assembled on a steel base, the primary and secondarcable are side in and side out.
After delivered to the site, there is no need to build a foundation, only needto transfer the load of the original
station to the mobile substation, the on-site workload is very small, thelayout is flexible, and it can be operated quickly.

Dry transformer

Dry type transformers are insulated with epoxy resin and have significant characteristics of low loss, low noise, low partial discharge, high mechanical strength, high electrical strength, and high heat resistance. The product has the advantages of small partial discharge, low noise, low loss, good heat dissipation performance, strong moisture resistance, strong resistance to sudden short circuits, large overload capacity, and beautiful appearance.

High Voltage HGIS THP145

THP is hybrid gas insulated switchgear: Hybrid means integration of advantages
of AIS and GIS – usage of mature reliable components of GIS and AIS busbar
module.

THP provides reliable and compact solution for outdoor substations. Its
factory-prefabrication and modularization the demand for applicationswhere:
• Substation construction or redevelopment has limited land for the substation
• Lead time for equipment and/or site works is minimal
