Solutions Overview

The electrical industry is a core component of public utilities, and power equipment is a crucial part of it.

Teruide provides customers with exquisite products and high-quality services in multiple dimensions such as new construction, renovation, expansion, and power load transfer.

Solution advantages

TGOOD offers comprehensive solutions, systems and services for diversified applications in high,
medium and low voltage power distribution networks.
Its leading technology in modular substations up to 252kV surpasses the expectations of efficiency, safety and reliability.

  • Reliable Performance
  • Land Saving
  • Modular Design

Product

  • High Voltage GIS TGP145

  • Prefabricated Substation

  • Mobile Trailer Substation

  • Medium Voltage RMU TGS 12/24

  • Medium Voltage AIS KYN37B

  • Medium voltage AIS KYN28A-12

  • Medium Voltage AIS TAP17

High Voltage GIS TGP145

The TGP145 is a compact metal encapsulated switchgear consisting of high-
voltage components such as circuit-breakers and disconnectors.

The TGP145 is used, where space is limited, such as extensions, on roofs and
offshore platforms, in city buildings, industrial plants and hydro power plants.

TGP145 GIS comply to the international standard IEC 62271-203; all elements
mounted inside the GIS conform to international standards as certified by KEMA.

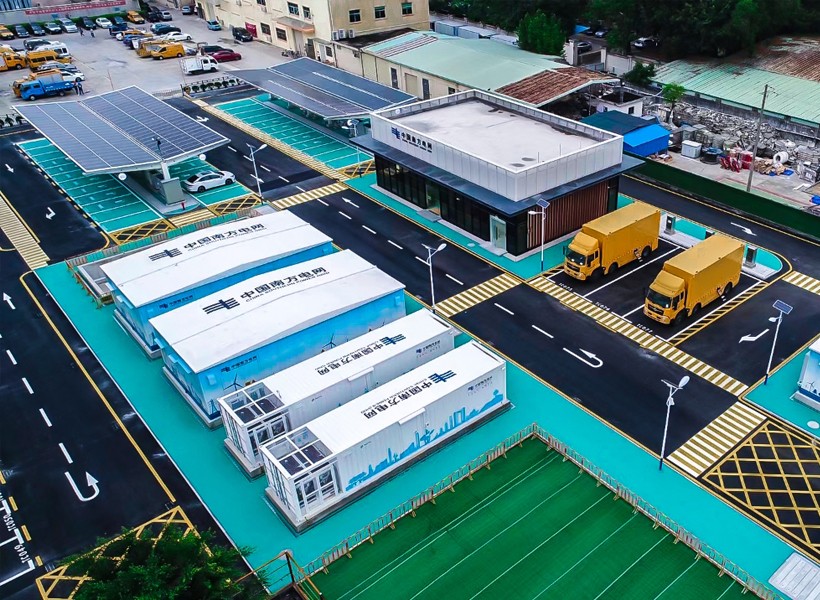

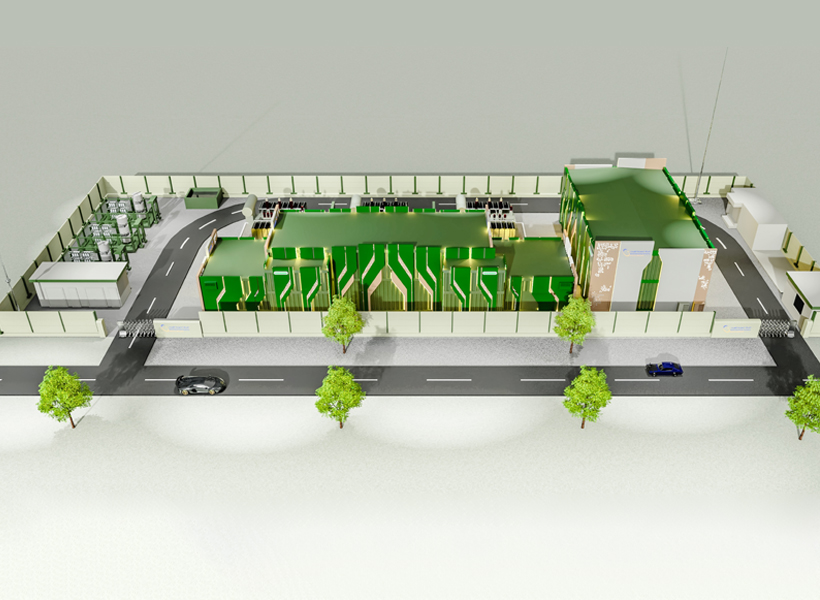

Prefabricated Substation

Fully integrated prefabricated substations and E-House systems
Best-in-class lead times measured in weeks, not months
Flexible designs can be skid or trailer mounted for rapid transport
Exceptional weatherproofing with strong condensation and corrosion resistance
High voltage gas insulated switchgear up to 145 kV available
Substation expansions and retrofits expand capacity within existing footprint in crowded cities and congested industrial zones
Standard designs comply with best international building codes; compliance with specific regional codes available

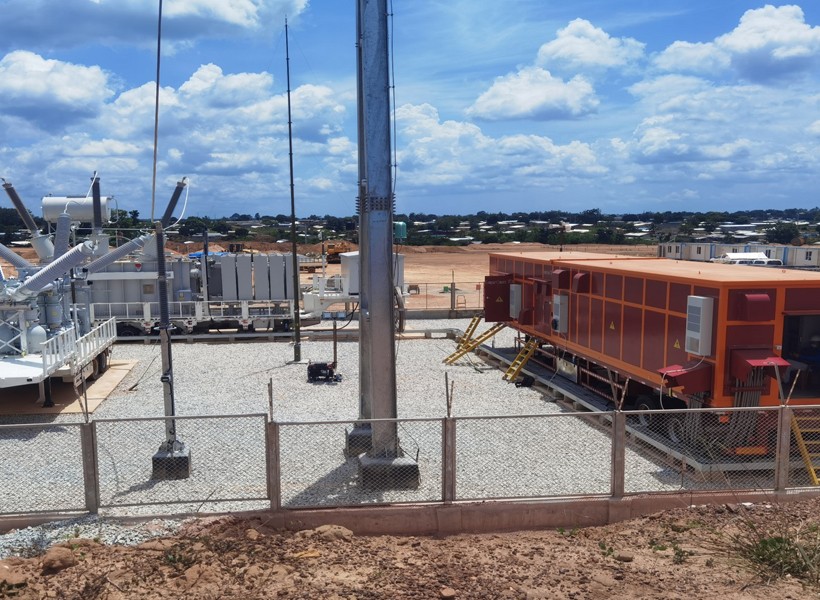

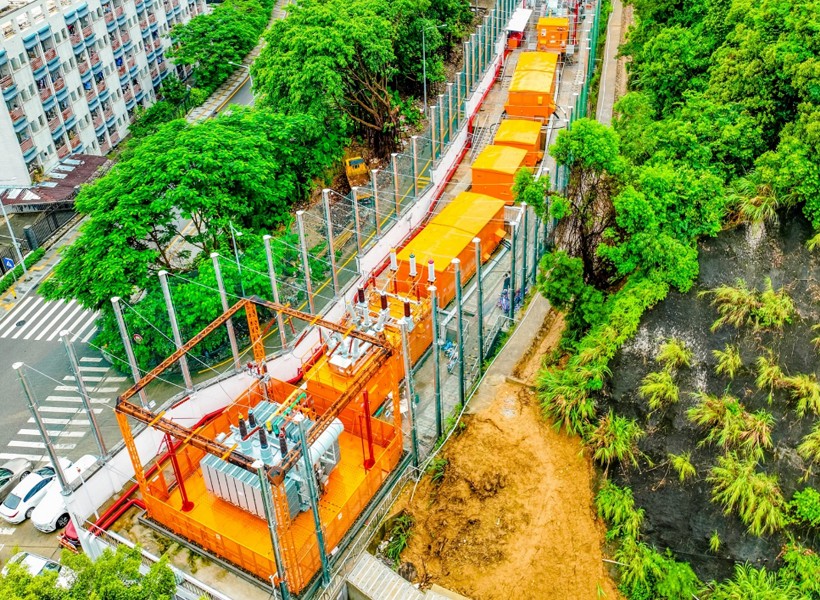

Mobile Trailer Substation

The mobile substation integrates five modules/modules:HGlS, main transformer, protection and control unites/substation automation,
medium voltage switch-gears/distribution and trailer, which adopts prefabricatedmodular design, and are assembled and tested in the factory.
lt is compact, flexible, quick installation, reliable inpower supply, and each module can be operated andtransported independently,Semi-trailers
are on standbyat any time to quickly respond to the requests of thepower grid, especially applied in emergency power supplyscene such as
technical transformation, maintenance,temporary power supply, emergency repair, and naturaldisasters.

Medium Voltage RMU TGS 12/24

TGS is a medium voltage gas insulated switchboard up to 24kV, 630A, 20kA 3s, used in
secondary distribution applications. It can be fitted with the following protection devices:
• Transformer protection by fuse (F function)
• Transformer and line protection by vacuum circuit-breaker (V function)
Its compactness, wide range of functions and ease of installation and
extensibility, make it a versatile switchboard to fit many secondary distribution
applications such as: public distribution, industry, infrastructure or renewables.

Medium Voltage AIS KYN37B

KYN37B air insulated AC metal enclosed armored movable switchgear is used to receive and distribute
electrical energy, and to control, protect, and monitor circuits. It has the functions of preventing accidental
opening and closing of circuit breakers, preventing the pushing and pulling of circuit breaker handcarts under
load, preventing the closing of live grounding switches, preventing power transmission when the grounding s
witch is closed, and preventing accidental entry into live compartments.

Medium voltage AIS KYN28A-12

Combine multiple wiring methods
according to user requirements to achieve ordinary electrical
control or intelligent digital control,

as well as online fault diagnosis and detection functions

Medium Voltage AIS TAP17

TAP is indoor, metal-enclosed switchgear designed for the MV section of HV/MV
and MV/MV substations.
It's a medium voltage equipment comprising of cubicles with breaking
devices, sensors, medium voltage connections and auxiliaries.
