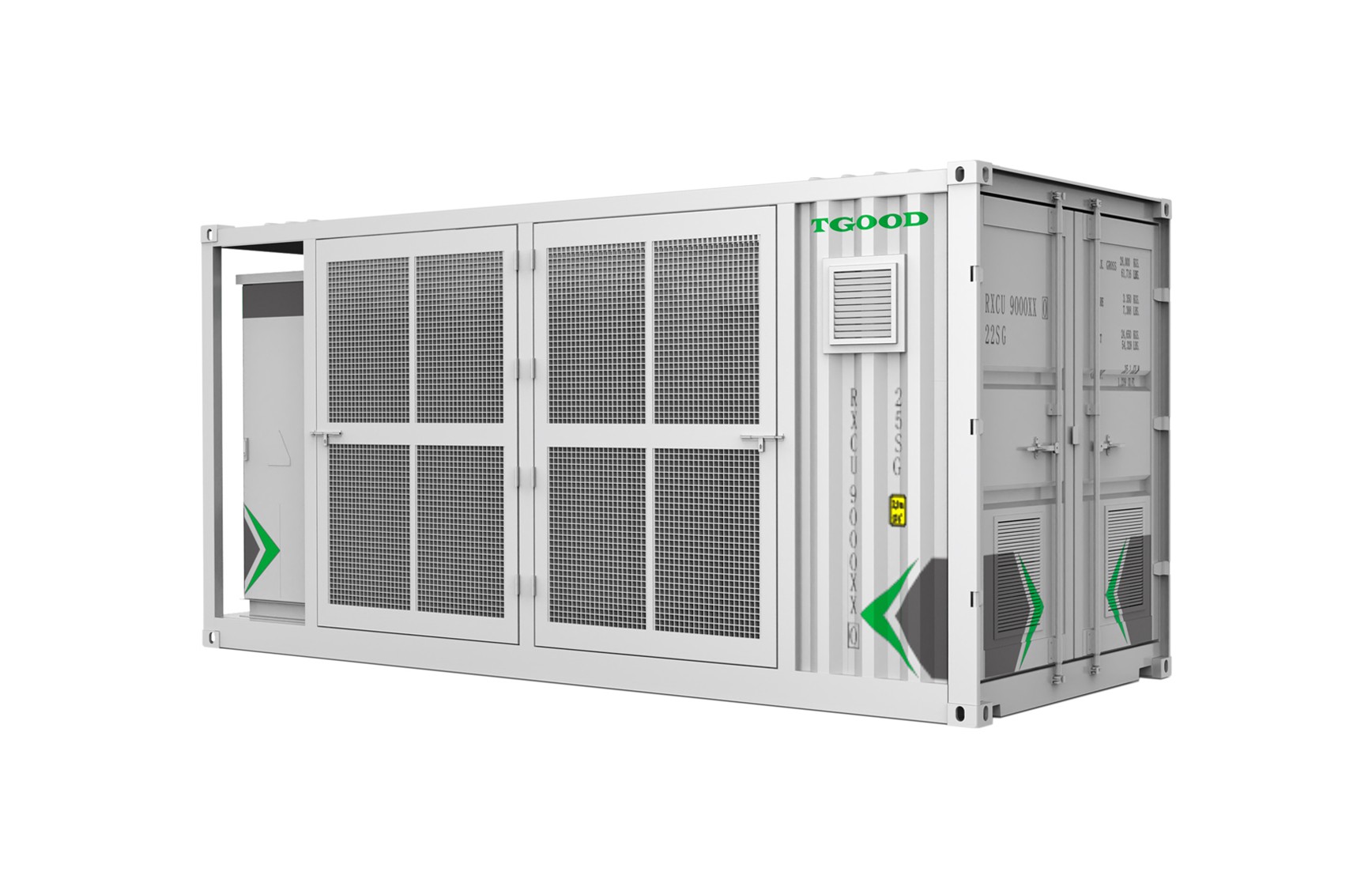

Smart Intergrated Kiosk
The step-up substation converts low-voltage AC power generated by the PV inverter
into medium-voltage AC power and feeds the power into the power grid.It integrates the
ring main unit, transformer, low-voltage cabinet, and auxiliary power supply into a
steel-structure container to provide a highly integrated power transformation and
distribution solution for ground-based PV plants in medium-voltage grid-tied application.
Product Features
-
-
Intelligent
- Detects the operating status of the ring main unit, transformer, and low-voltage switchboard in real time.
Detects power parameters online, with the current and voltage detection accuracy.
Supports the remote control of the general circuit breaker for the low-voltage switchboard and
ring main unit as well as the remote query of the running information about the complete step-up substation.
-
-
-
Prefabricated
- Internal equipment has been prefabricated and installed.
20-feet container structure that facilitates transportation and installation.
-
-
-
Reliable
- Solid and reliable structure design
IP54 rating of medium-voltage/low-voltage rooms
-
-
-
Fast
- Fast deployment can be implemented.
Only low-voltage cables need to be routed in and medium-voltage cables need to be routed out onsite.
-
Technical Parameter
-
- Rated Voltage
- 10/24/35kV
-
- Rated capacity
- Below 9000kVA
-
- Rated Frequency
- 50Hz
-
- Protection level
- IP54
