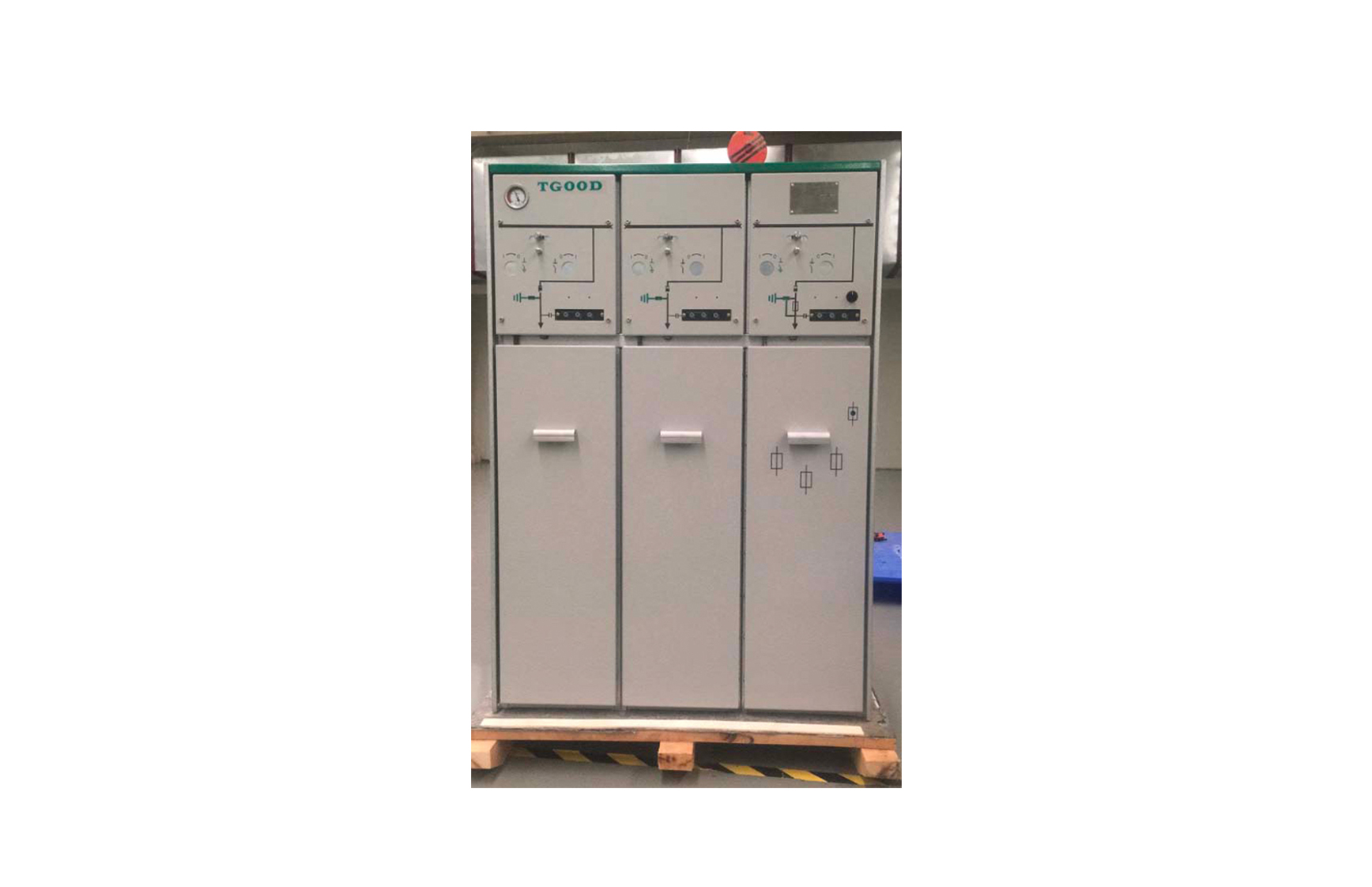

Medium Voltage RMU TGS 12/24
TGS is a medium voltage gas insulated switchboard up to 24kV, 630A, 20kA 3s, used in
secondary distribution applications. It can be fitted with the following protection devices:
• Transformer protection by fuse (F function)
• Transformer and line protection by vacuum circuit-breaker (V function)
Its compactness, wide range of functions and ease of installation and
extensibility, make it a versatile switchboard to fit many secondary distribution
applications such as: public distribution, industry, infrastructure or renewables.
Product Features
-
-
Flexible Solution
- Standard modular design, including load break switch function C , circuit breaker function V,
load break switch with fuse function F, metering function M, etc.
Modules or combination cabinets can be flexibly combined and expanded, and cabinet
side parallel cabinets can be achieved through busbar connectors
-
-
-
Maintenance free
- The live part is insolated in gas tank which designed with a lifelong sealed pressure system. Maintenance free switchgear and shielded cable terminations can ensure:
High power supply reliability, Installation, operation, expansion, and replacement do not involve SF6 gas operations
-
Technical Parameter
-
- Rated Voltage
- 12/24kV
-
- Rated Frequency
- 50/60Hz
-
- Rated Current
- 630A
-
- Rated short circuit withstand current
- 20kA/3s
