Medium Voltage AIS TAP17

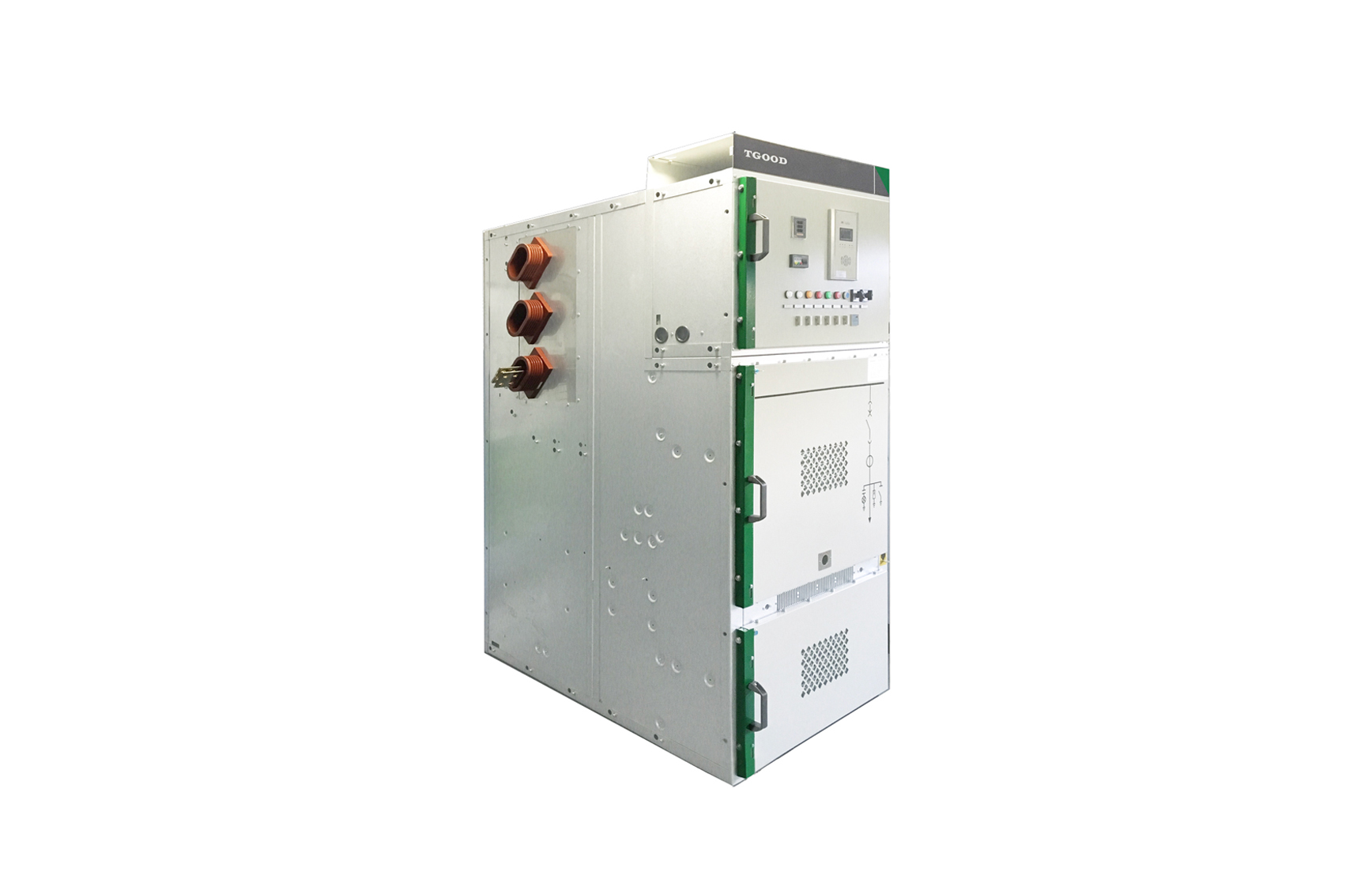

TAP is indoor, metal-enclosed switchgear designed for the MV section of HV/MV
and MV/MV substations.
It's a medium voltage equipment comprising of cubicles with breaking
devices, sensors, medium voltage connections and auxiliaries.
Product Features
-
-
Reliable Performance
- Type testing was carried out for each performance level in the TAP range.
The design, manufacturing and testing of TAP was carried out according to IEC 62271.100 & IEC62271.200
Three-dimensional computer modeling techniques were used to study the electrical fields
-
-
-
Simplicity Design
- A user interface which is easily understood by everybody
Interlocks and padlocks preventing operator errors
Protection units enabling on-site information retrieval without any additional devices
Preventive maintenance limited to simple, routine operating checks and cleaning and greasing every 5 to 10 years
Easy installation due to identical civil engineering dimensions for all cubicles and installation being possible against a wall
-
-
-
Safety Operation
- Earth switch mechanical indication from the front, with interlocked access to connections and busbars
Racking in and out of the VCB is only possible with the door closed
The power-on indicator (VPS) is situated on the front of the functional unit
The earthing switch has making capacity
Remote operation is optional to avoid operator standing in front of cubicles
Internal arc withstand developed for all functional units
-
Technical Parameter
-
- Rated Voltage
- 17.5kV
-
- Rated Frequency
- 50/60Hz
-
- Rated Current
- 1250/2500/3150A
-
- Rated short circuit withstand current
- 31.5kA/3s
