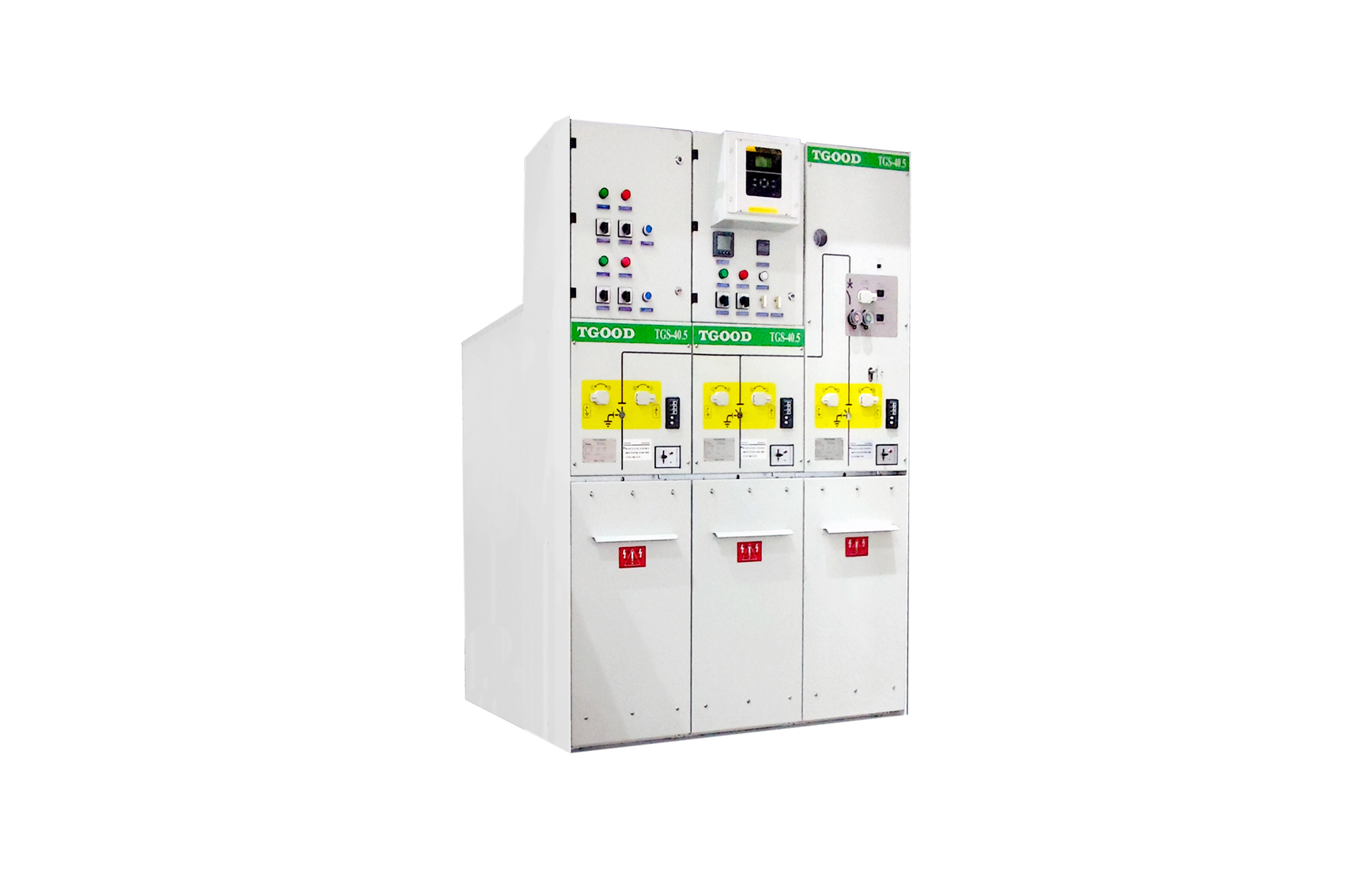

Medium Voltage RMU TGS 40.5
The TGS-40.5 switchgear is designed and produced in accordance with GB and IEC standards,
using a fully insulated and sealed structure, suitable for harsh environments such as pollution,
salt spray, humidity, and high altitude. Multiple solutions meet more stringent requirements.
Product Features
-
-
Modular Design
- Standard modular design, including load break switch function C , circuit breaker function V,
cable direct connection function D, PT unit with isolation switch, etc.
Modules or combination cabinets can be flexibly combined and expanded, and cabinet
side parallel cabinets can be achieved through busbar connectors
-
-
-
Maintenance free
- The live part is insolated in gas tank which designed with a lifelong sealed pressure system. Maintenance free switchgear and shielded cable terminations can ensure:
High power supply reliability, Installation, operation, expansion, and replacement do not involve SF6 gas operations
-
Technical Parameter
-
- Rated Voltage
- 40.5kV
-
- Rated Frequency
- 50/60Hz
-
- Rated Current
- 630A
-
- Rated short circuit withstand current
- 25kA/3s
