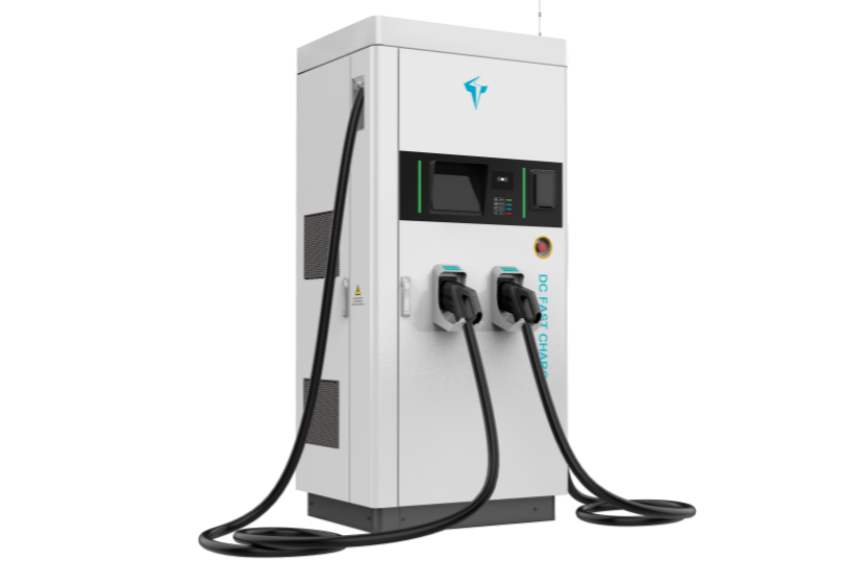

80/120/160kW Integrated DC Charger

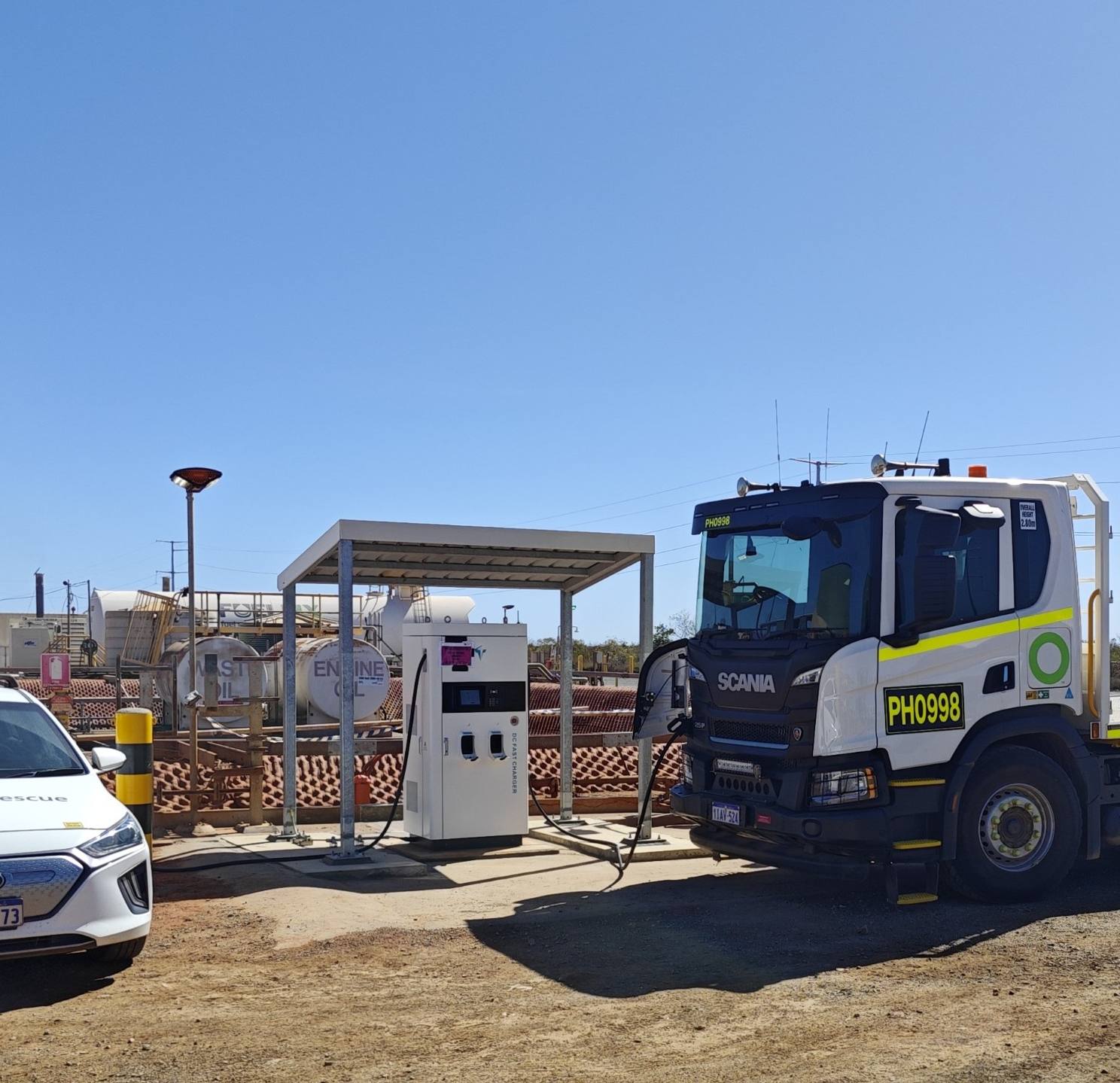

CE standard 160kW integrated DC charger provides a DC charging solution for electric vehicles. This product integrates charging module, charging control, energy meter, communication and other functions with the CCS2 connector supported, providing flexible power output and charging services for passenger cars and mining trucks.
Product Features
-
-
High compatibility
- System efficiency is higher than 95%, high power density, saving system operation cost
High power factor, low harmonic distortion, no harmonic pollution
-
-
-
Secure and safe
- With short circuit, over current, over voltage, overcharge, anti-reverse connection and other protection functions
DC charger and charging module both certified with CE mark
-
-
-
Weather resistance
- Excellent cold resistance, high temperature resistance, salt spray resistance, moisture resistance and other functions
-
-
-
Intelligent control
- Charging status light indicator function, monitoring the machine running status in real time
Remote fault diagnosis and remote restart
Comply with OCPP 1.6J, intelligent controlled by E-mobility
-
Technical Parameter
-
- Product Model
- TEC-DC1.0/160-CCANN
-
- Power Supply
- 3P+N+PE
-
- Input Voltage
- 400Vac ± 15%
-
- Output Voltage
- 50Vdc~1000Vdc
-
- Rated Power
- 160kW
-
- Maximum Current
- 200A
-
- Charge Connector
- CCS2*2
-
- Cable Length
- 5m
-
- Peak Efficiency
- ≥95%
-
- IP Rating
- IP54
-
- Certification
- CE, CB, RCM, ADQCC, OCA
