7/11/22kW AC Charger - Public Version
TELD CE standard AC charger adopts advanced communication technology, realizing charging reservations, status monitoring, and other functions with configurations on APP. Various charging methods are supported and equipped with a high-definition display screen showing real-time charging data. It complies with strict safety standards, ensuring a stable and efficient charging experience.
Product Features
-
-
Outstanding Design
- Avant-garde design, small size
A variety of LED lamp indications
-
-
-
Flexible Options
- Equipped with 4.3" HD screen

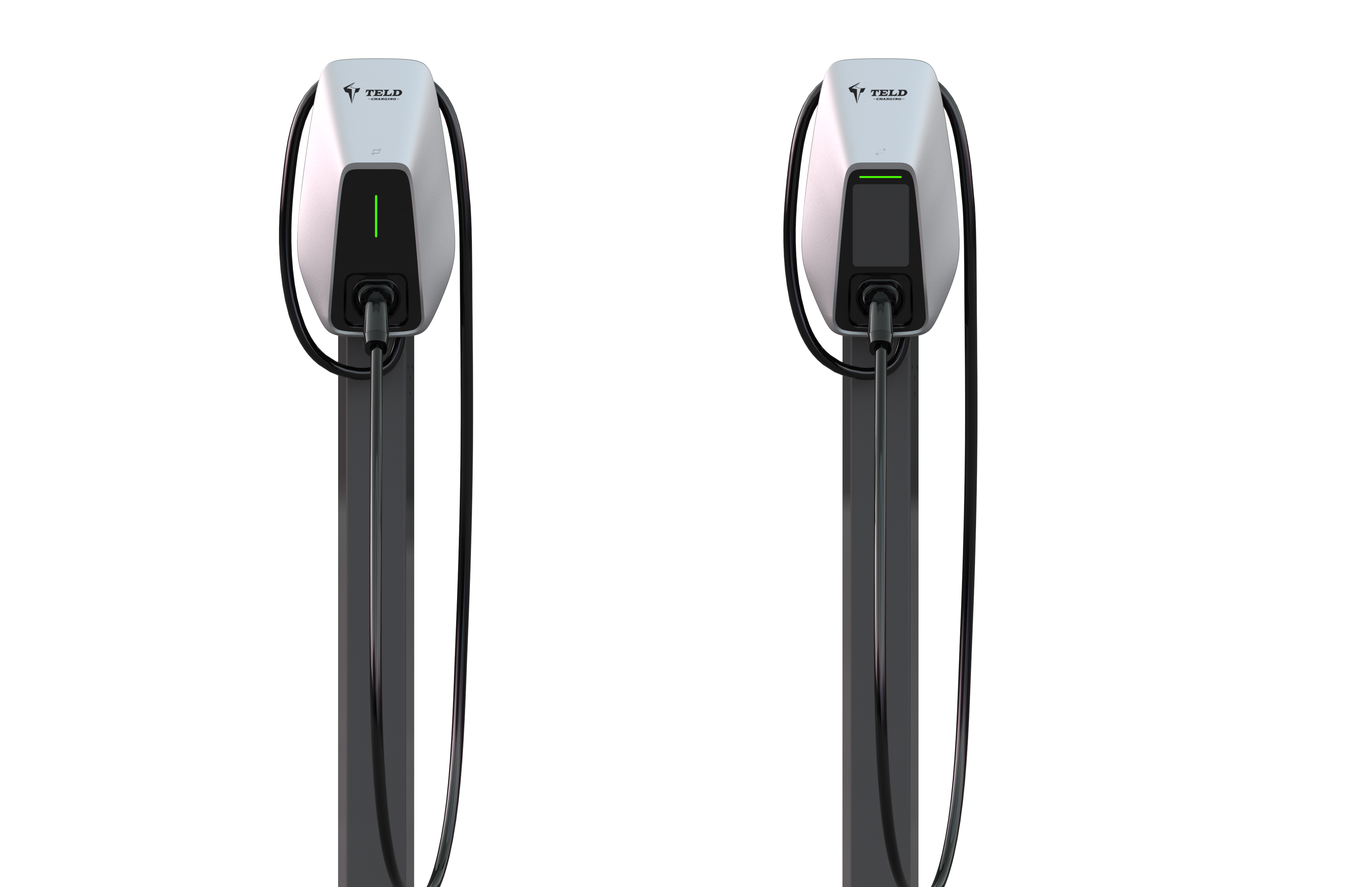

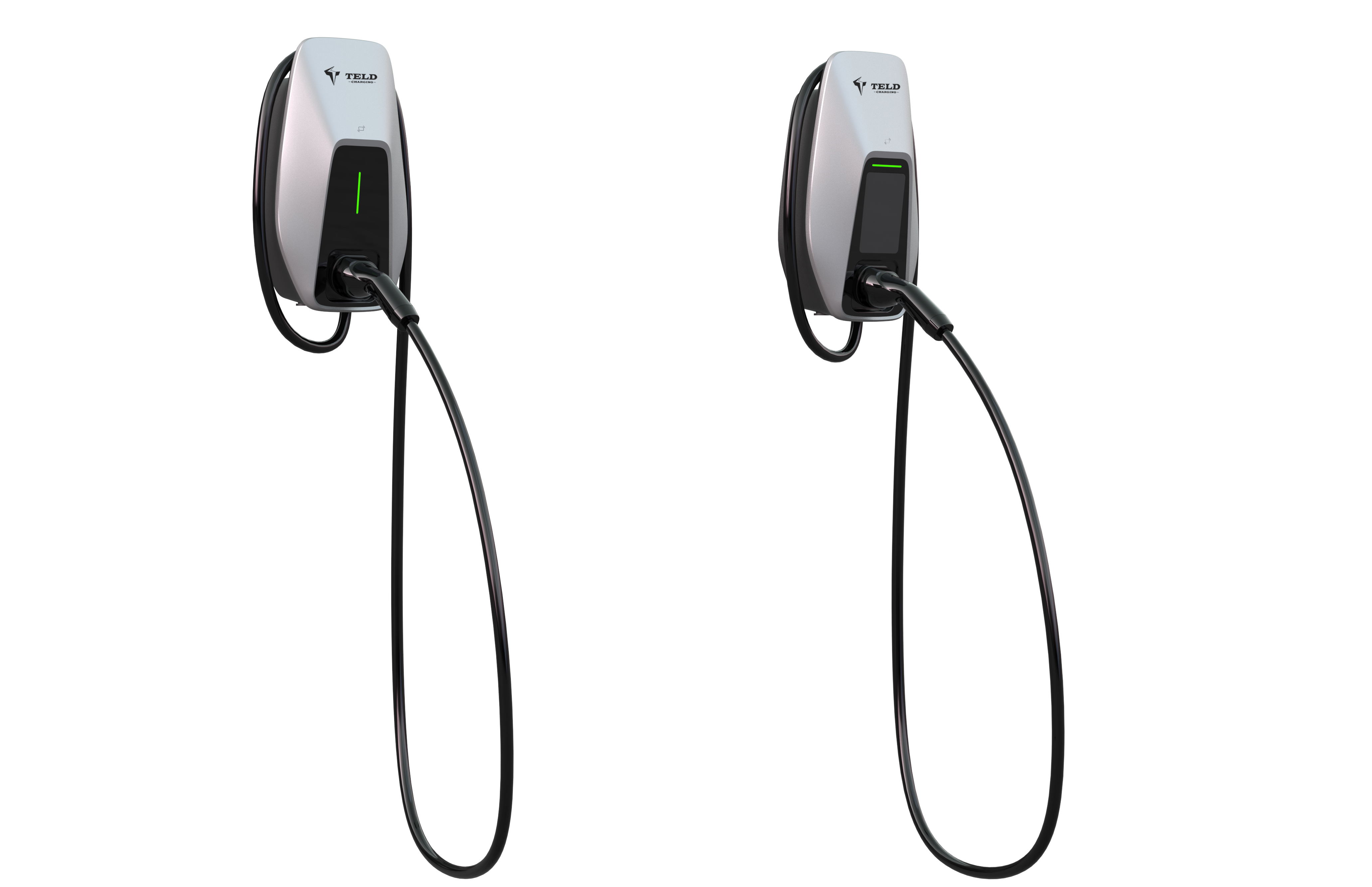

Wall-mounting, floor-mounting for option, easy to install
-
-
-
Intelligent Control
- Support Wi-Fi/Bluetooth
Support remote upgrade
Flexible start through RFID/plug & play
-
-
-
Secure and Safe
- 30mA AC & 6mA DC residual current protection
IP65 high protection level
-
Technical Parameter
-
- Product Model
- TCDZ-AC400/22 -KCEMCA
-
- Power Supply
- 3P+N+PE
-
- Input Voltage
- 400Vac±20%
-
- Rated Current
- 32A
-
- Rated Power
- 22kW
-
- Charge Connector
- Type2 Case C
-
- Cable Length
- 5m
-
- Start Mode
- APP, RFID, Plug & Charge
-
- Screen
- 4.3'' 500nit
-
- Communication
- 4G, Bluetooth, Wi-Fi, Ethernet
-
- IP Rating
- IP65
-
- Certification
- CE, CB, UKCA, RCM
