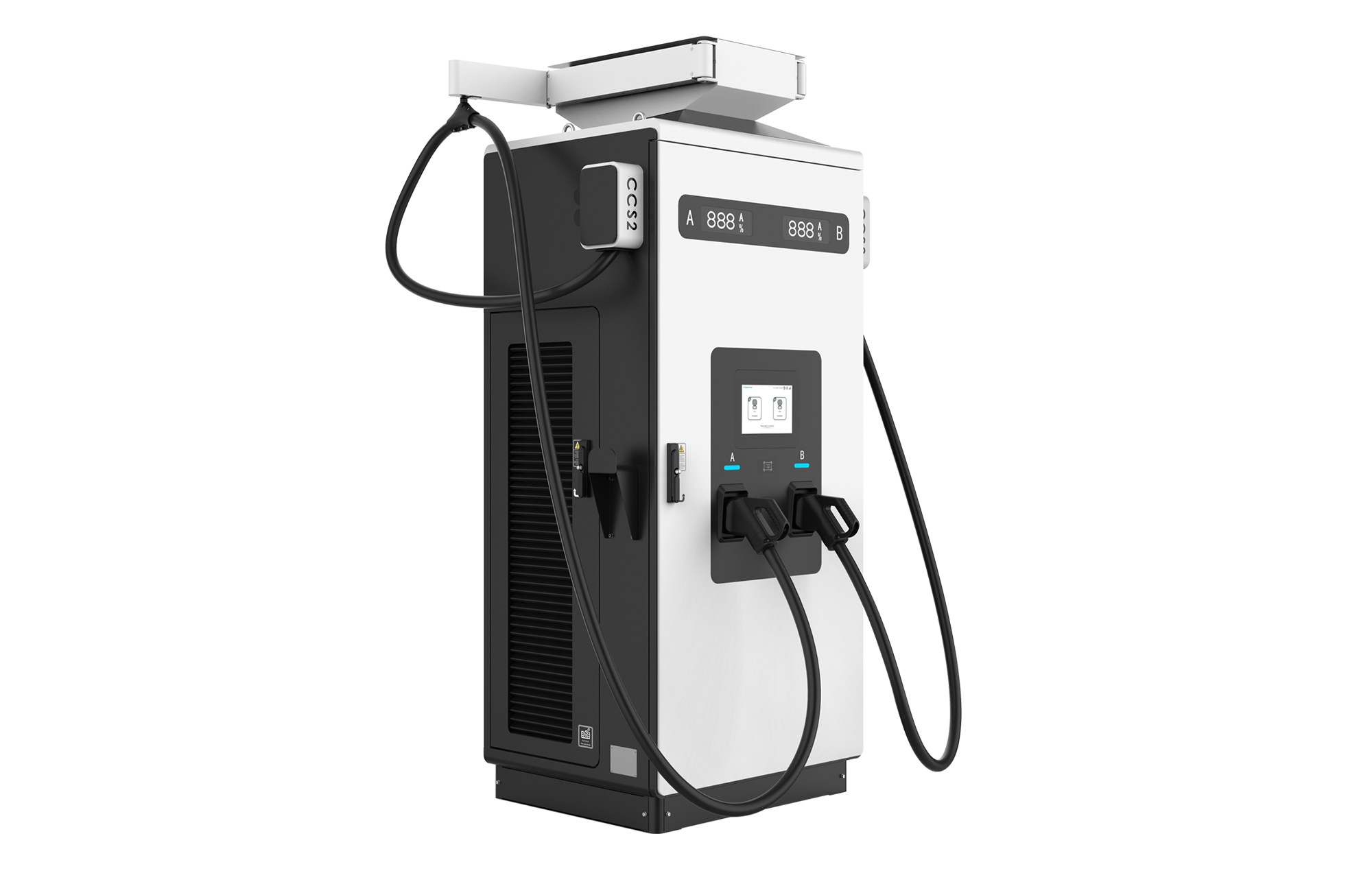

240/320kW Integrated DC Charger
The CE standard 240/320kW integrated charger is mainly used for charging commercial vehicles such as electric heavy-duty trucks and electric buses. The whole machine is equipped with two CCS2 charging connectors, and other standard charging connectors such as GB/T standard and CHAdeMO standard can be selected. The charger can be equipped with a cable management system, and the charging cable does not fall to the ground, making it more labor-saving and durable.
Product Features
-
-
Powerful performance
- Rated 350A output current
Charging efficiency up to 95%
Low standby power consumption, wide voltage output range
-
-
-
Rich configurations
- Optional charging interface of different standards
Support local dynamic load adjustment
Multi-language switching, supporting OCPP 1.6J intelligent charging
Operating status monitored by equipment management system
-
-
-
Excellent design
- 10.1-inch capacitive screen
External display charging SOC
Optional cable management system
-
-
-
Intelligent control
- Multiple electrical protections for worry-free charging
TUV-CE certification for the charger and power modules
-
Technical Parameter
-
- Product Model
- TEC-320E
-
- Power Supply
- 3P+N+PE
-
- Input Voltage
- 400Vac ± 10%
-
- Output Voltage
- 150Vdc~1000Vdc
-
- Rated Power
- 320kW
-
- Maximum Current
- 350A
-
- Charge Connector
- CCS2*2
-
- Cable Length
- 5m
-
- Peak Efficiency
- ≥95%
-
- IP Rating
- IP54
-
- Certification
- CE
