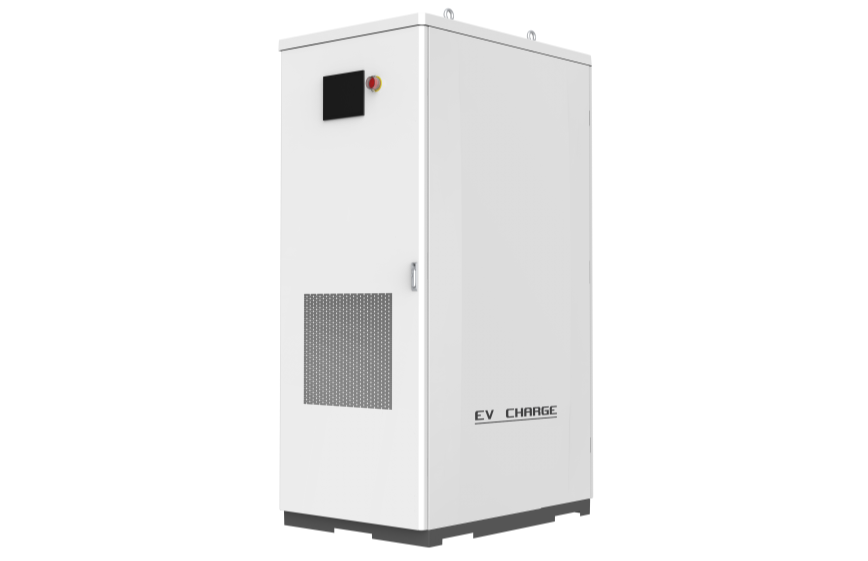

240kW Power Cabinet
As the core of the group charging system, the 240kW power cabinet integrates charging modules, charging control, and communication functions to provide users with safe, reliable, and efficient charging services. The ultra-wide output voltage range satisfies the charging demand of special vehicles and vehicles applied to universal voltage platforms. With the support of TELD charging management platform or OCPP E-Mobility, large-scale charging operation and management can be achieved.
Product Features
-
-
Intelligent design
- Intelligent power distribution to improve power utilization
Intelligent charging dispenser identification, compatible with CCS and GBT charging dispenser
-
-
-
Easy maintenance and installation
- Pluggable modular design
Support remote upgrade
Rapid deployment and efficient installation
-
-
-
Easy expansion
- The power distribution unit can be connected in parallel with the cabinet, which is convenient to increase capacity and compatible with supercharge charging dispensers
-
-
-
Efficient and reliable
- Ultra-wide voltage output, covering all vehicles
High output efficiency, lower operating costs
Innovative zoning filtration, better weather resistance
High strength composite shell for longer service life
-
Technical Parameter
-
- Product Model
- TZKX-DC1000/240-KEX
-
- Power Supply
- 3P+N+PE
-
- Input Voltage
- 400Vac ± 15%
-
- Output Voltage
- 50Vdc~1000Vdc
-
- Rated Power
- 240kW
-
- Output Channels
- 6
-
- Peak Efficiency
- ≥95%
-
- IP Rating
- IP54
-
- Certification
- CE, CB, UKCA, ADQCC, OCA
