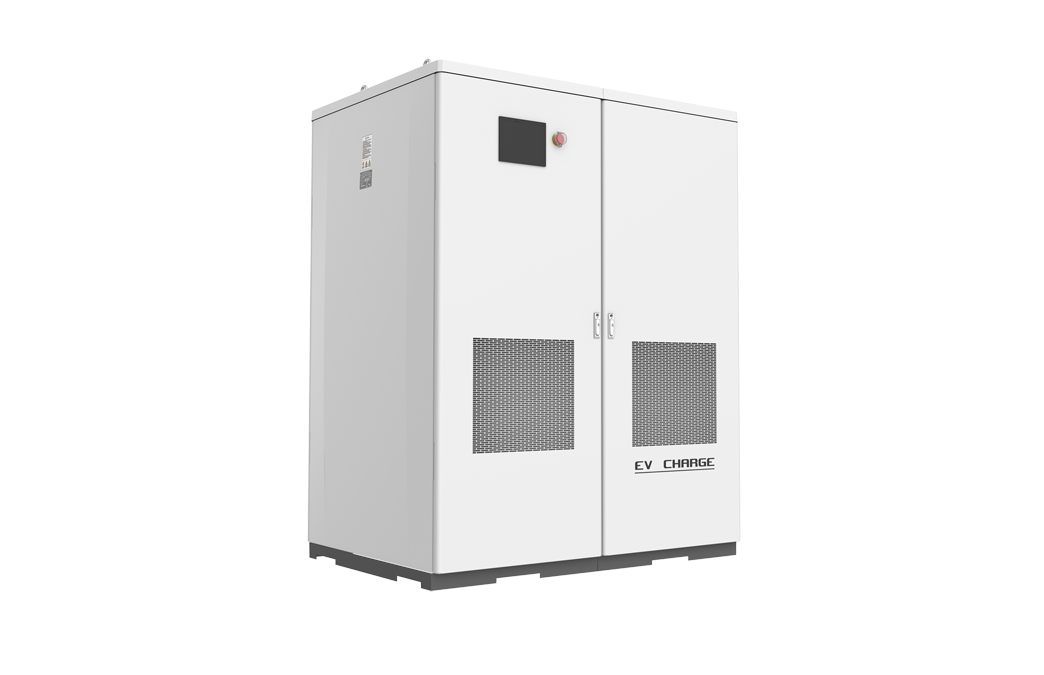

480kW Power Cabinet
As the core of the group charging system, the 480kW power cabinet integrates charging modules, charging control, and communication functions to provide users with safe, reliable, and efficient charging services. The ultra-wide output voltage range satisfies the charging demand of special vehicles and vehicles applied to universal voltage platforms. With the support of TELD charging management platform or OCPP E-Mobility, large-scale charging operation and management can be achieved.
Product Features
-
-
Power distribution
- Full matrix topology, intelligent scheduling
High power utilization rate
-
-
-
High protection
- Fully silicone-filling process, anti-corrosion
Highly adaptable to different environments
-
-
-
Easy operation and maintenance
- Plug-in modular design
Support remote upgrade
Rapid deployment and fast installation
-
-
-
Strong compatibility
- Ultra-wide output voltage range of 50V~1000V, suitable for a wide range of vehicle models
Compatible with CCS and GBT charging dispenser
-
Technical Parameter
-
- Product Model
- TZKX-DC1000/480-KEX
-
- Power Supply
- 3P+N+PE
-
- Input Voltage
- 400Vac ± 15%
-
- Output Voltage
- 50Vdc~1000Vdc
-
- Rated Power
- 480kW
-
- Output Channels
- 12
-
- Peak Efficiency
- ≥95%
-
- IP Rating
- IP54
-
- Certification
- CE, CB, UKCA, ADQCC, OCA
